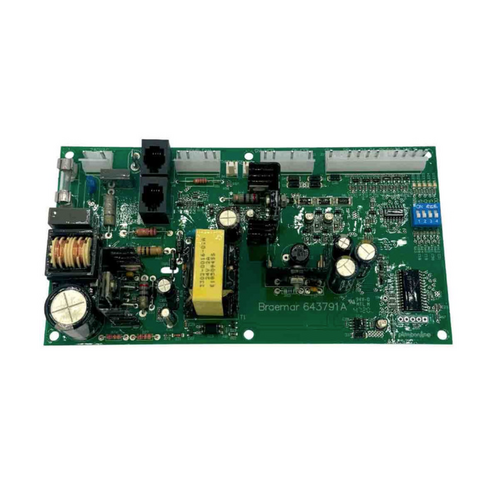

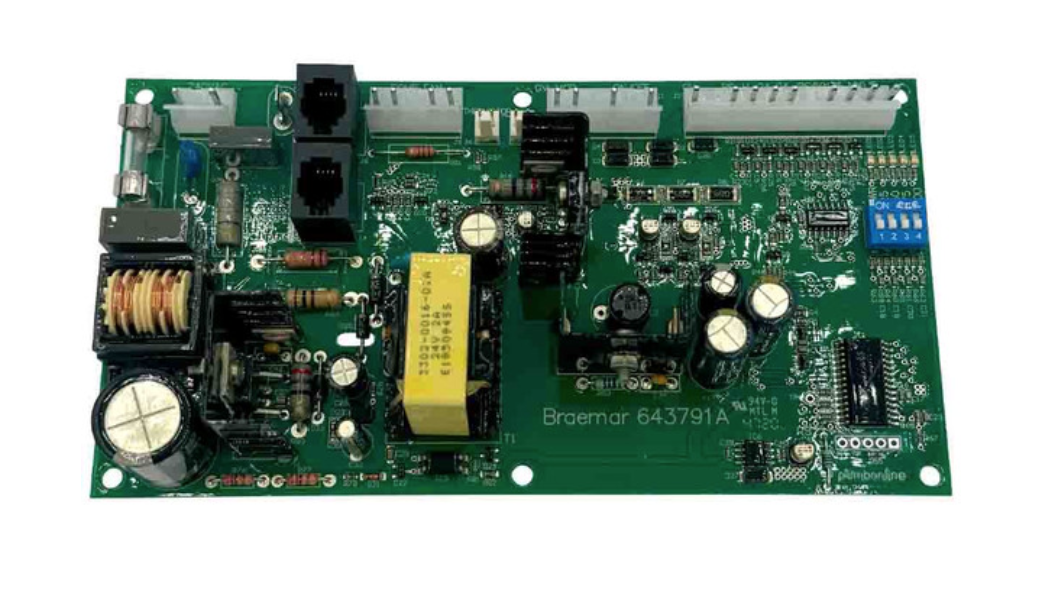

The Braemar THM 530 & THM 530X are gas ducted heaters, and the PCB Circuit Control Board (Modulating Control Board, MCB) with Part Number: 640365 is a critical component responsible for controlling various functions of the heater. The PCB manages ignition, fan speed modulation, temperature regulation, and safety protocols for these gas heaters.
Here’s a breakdown of what the PCB Modulating Control Board (PN: 640365) does, its installation, and common troubleshooting tips for the Braemar THM 530 & THM 530X NG ducted heaters.
The PCB Modulating Control Board in the Braemar THM 530 & X NG ducted heaters regulates the operation of several critical components:
Ignition Process:
The PCB controls the ignition system by activating the spark igniter when the system is powered on and ensuring the flame is correctly established.
Fan Speed Modulation:
It modulates the fan speed based on the heating requirements and room temperature. By adjusting the fan speed, the board ensures efficient air circulation while maintaining energy efficiency.
Temperature Control:
The PCB works with the thermostat to regulate the burner and fan speed to achieve and maintain the desired room temperature.
Safety Mechanisms:
The board continuously monitors flame sensors, pressure switches, and temperature sensors. If an abnormal condition is detected, such as a lack of flame or a malfunctioning sensor, the PCB will shut down the system to prevent hazardous situations like unburned gas buildup or overheating.
Error Codes and Diagnostics:
The PCB typically includes diagnostic capabilities, displaying error codes when there is a fault in the system. These error codes can help identify issues such as ignition failure, flame detection failure, or sensor malfunctions.
If you need to replace the PCB Circuit Control Board in the Braemar THM 530 & THM 530X NG ducted heaters, follow these steps:
Screwdrivers (Phillips and flathead)
Multimeter (for checking electrical connections)
Replacement PCB (Part Number: 640365)
Labels or camera (for marking wire connections)
Turn Off Gas and Power:
Ensure the gas supply and electrical power are turned off before starting any work. This is crucial for safety.
Remove the Heater’s Access Panel:
Use a screwdriver to remove the access panel or cover on the heater to expose the internal components, including the PCB.
Locate the Existing PCB:
The PCB is typically located near the burner and fan assembly. It may be mounted with screws or clips.
Disconnect Wiring from the Old PCB:
Before removing the old PCB, carefully label or photograph the wire connections to ensure they are reconnected to the new board in the same way.
Remove the Old PCB:
Unscrew or unclip the existing PCB from its mounting and carefully remove it from the unit.
Install the New PCB (PN: 640365):
Place the new PCB in the same location as the old one and secure it using screws or clips.
Reconnect all the wiring to the new PCB according to the labels or photo you took earlier.
Double-Check Wiring:
Ensure all the connections are properly made, especially critical components like the flame sensors, ignition system, and fan motor.
Reassemble the Heater:
Once the new PCB is securely installed and all wiring is connected, replace the access panel or cover and screw it back into place.
Turn On Gas and Power:
Turn the gas and power supply back on and test the system to ensure it’s operating correctly.
Verify System Operation:
The heater should now attempt to ignite, and the fan should modulate based on the temperature setting. Monitor the unit for proper operation and look for any error codes.
If your Braemar THM 530 & X heater is still not functioning correctly after replacing the PCB (PN: 640365), here are some common troubleshooting tips:
Possible Causes:
Faulty spark igniter or flame sensor.
Incorrect wiring on the PCB.
Solution:
Double-check the wiring on the new PCB.
Test the spark igniter to ensure it is generating a spark.
Clean or inspect the flame sensor to ensure proper flame detection.
Possible Causes:
Error codes indicate issues such as ignition failure, flame detection failure, or fan problems.
Solution:
Refer to the user manual for a list of error codes and their meaning.
Troubleshoot the specific component associated with the error code (e.g., check the flame sensor if there is a flame failure code).
Possible Causes:
The PCB might not be modulating the fan speed correctly.
Faulty fan motor or incorrect fan wiring.
Solution:
Check that the fan speed control wiring is securely connected to the PCB.
Test the fan motor to ensure it is functioning properly.
Possible Causes:
Temperature sensors may not be functioning correctly, leading to improper heating or overheating.
Solution:
Check and test the temperature sensors to ensure they are properly calibrated and connected.
Verify the fan speed modulation and ensure that air circulation is adequate.
To ensure that your Braemar THM 530 & X NG ducted heater continues to work efficiently, follow these maintenance tips:
Clean the Flame Sensors: Periodically clean the flame sensors to remove any soot or debris that could impair their ability to detect the flame.
Inspect the Fan: Regularly inspect the fan for any dust or debris that could cause it to run inefficiently or damage the motor.
Test the Igniter: Ensure the igniter is working properly and is not worn out.
Check for Leaks: Inspect the gas connections for any signs of leakage and ensure that the gas supply is intact.
