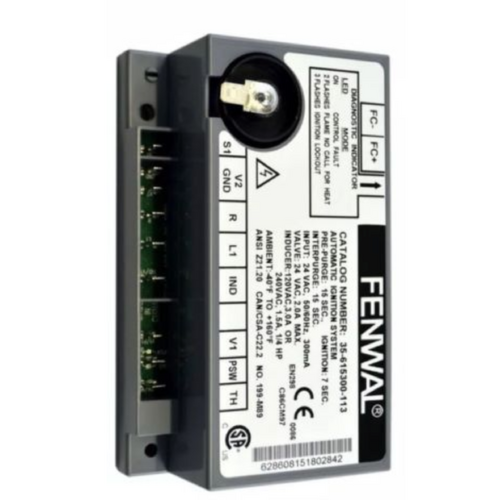

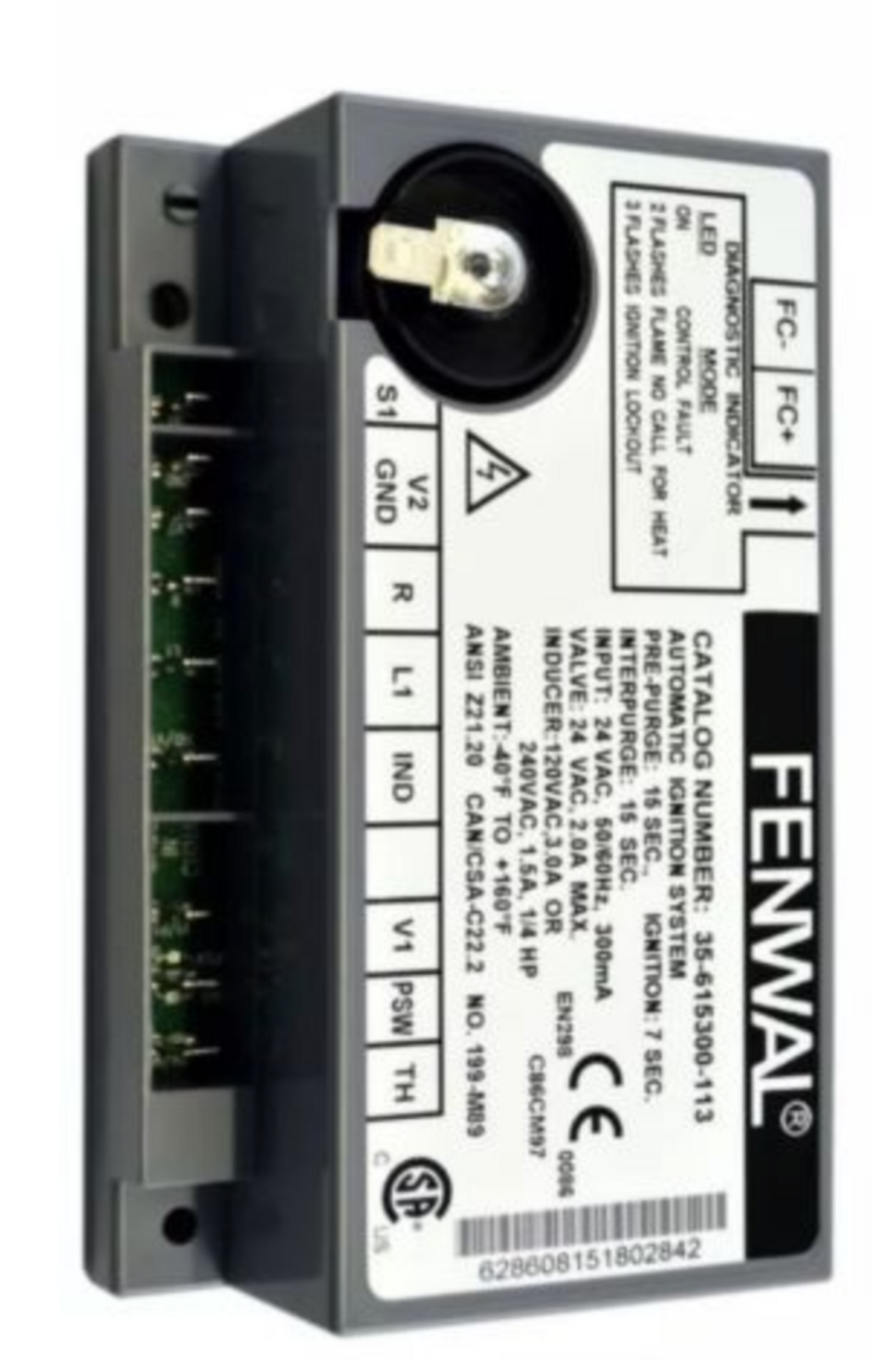

The Braemar THM6 Star Ignition Unit Fenwal 35-615300-113 is an essential component used in Braemar THM6 Star Gas Ducted Heaters. This ignition unit is responsible for providing electronic ignition for the gas burner, which is a crucial function for starting the combustion process safely and efficiently. It's designed to ensure the heater operates smoothly, providing reliable heating to residential or commercial spaces.
The Fenwal 35-615300-113 Ignition Unit is a high-quality, reliable component that uses electronic ignition technology to create a spark and ignite the gas burner in Braemar THM6 Star Gas Ducted Heaters. This ignition system is an efficient and safe way to control the heater's operation without needing a continuously burning pilot light.
Electronic Ignition:
The Fenwal 35-615300-113 uses electronic ignition, generating a high-voltage spark when needed to ignite the gas in the burner. This eliminates the need for a traditional pilot light, making the system more energy-efficient and environmentally friendly.
The ignition occurs only when necessary, reducing energy waste and enhancing the overall efficiency of the heater.
Flame Detection and Safety:
After the ignition, the unit continuously monitors the flame to ensure that it remains lit. If the flame goes out or fails to ignite, the ignition unit will automatically shut off the gas supply. This prevents the release of unburned gas into the environment and ensures the system operates safely.
The flame failure protection feature ensures that no gas flows if the flame is not detected.
Overheating Protection:
The Fenwal 35-615300-113 unit is designed to operate within safe temperature ranges. If the system begins to overheat, the unit can cut off power or stop the gas supply to prevent damage to the system or any safety risks.
Durable Construction:
Made with high-quality materials, the Fenwal 35-615300-113 Ignition Unit is built to withstand the high temperatures and harsh conditions typically found in gas-powered heating systems.
Its durable design ensures long-term reliability, even with frequent use in demanding environments.
Part Number 628608:
The Part Number 628608 corresponds to the Fenwal 35-615300-113 Ignition Unit, specifically for Braemar THM6 Star Gas Ducted Heaters. This part number is important for sourcing the correct replacement part when needed.
Signal from Thermostat:
When the thermostat signals that the heating is required, the ignition unit is activated, beginning the ignition sequence.
Gas Flow:
The ignition unit opens the gas valve, allowing gas to flow into the burner.
Spark Generation:
The Fenwal 35-615300-113 ignition unit generates a high-voltage spark, igniting the gas in the burner, which starts the combustion process and begins the heating cycle.
Flame Monitoring:
After the ignition, the unit monitors the flame to ensure it stays lit. If the flame fails to ignite or is extinguished, the ignition unit will shut off the gas supply to prevent the buildup of unburned gas.
Continuous Safety Checks:
The unit continuously checks the flame to ensure safety throughout the heating process. If it detects any issues, it will shut down the gas supply, reducing the risk of gas leakage or unsafe conditions.
The Fenwal 35-615300-113 Ignition Unit is designed for Braemar THM6 Star Gas Ducted Heaters, typically used in both residential and commercial heating systems. These heaters circulate warm air through ducts to heat larger areas efficiently.
The ignition unit is vital for ensuring safe, reliable, and efficient operation of the heater, providing the necessary spark to ignite the gas and control the combustion process.
If you're experiencing problems with your Braemar THM6 Star Gas Ducted Heater, it could be related to the Fenwal 35-615300-113 Ignition Unit. Some common issues include:
Failure to Ignite: If the ignition unit is not generating a spark, the heater will fail to start.
Flame Detection Problems: If the unit fails to detect the flame after ignition, it will shut off the gas supply as a safety precaution.
Gas Supply Issues: If the ignition unit isn't functioning correctly, the heater may not receive the necessary gas flow or spark to ignite.
If you are facing ignition or heating issues with your Braemar THM6 Star Gas Ducted Heater, replacing the Fenwal 35-615300-113 Ignition Unit could resolve the problem. Here's a general guide on how to replace the unit:
Turn Off Power and Gas:
Ensure the heater is powered off and the gas supply is completely turned off for safety before working on the unit.
Locate the Ignition Unit:
The Fenwal 35-615300-113 Ignition Unit is typically located near the gas valve and burner assembly. Consult your heater's manual for exact placement.
Disconnect Wiring:
Carefully disconnect the wiring from the old ignition unit, taking note of the wiring configuration so that you can reconnect the new unit correctly.
Remove the Old Ignition Unit:
Remove the old ignition unit from the system and replace it with the new Fenwal 35-615300-113 unit.
Reconnect Wiring:
Reconnect the electrical wiring to the new ignition unit, ensuring all connections are secure and properly configured.
Test the Heater:
After the replacement, turn the power and gas supply back on, then test the heater to ensure the ignition unit is working properly and the system is functioning as expected.
The Braemar THM6 Star Ignition Unit Fenwal 35-615300-113 is a vital component that ensures the safe and efficient operation of Braemar THM6 Star Gas Ducted Heaters. It provides the necessary ignition for the gas burner and ensures continuous flame detection for safe operation. If you are facing issues such as failure to ignite, intermittent heating, or flame detection problems, replacing the ignition unit may resolve the issue.
SKU | 19977 |
Brand | Braemar |
