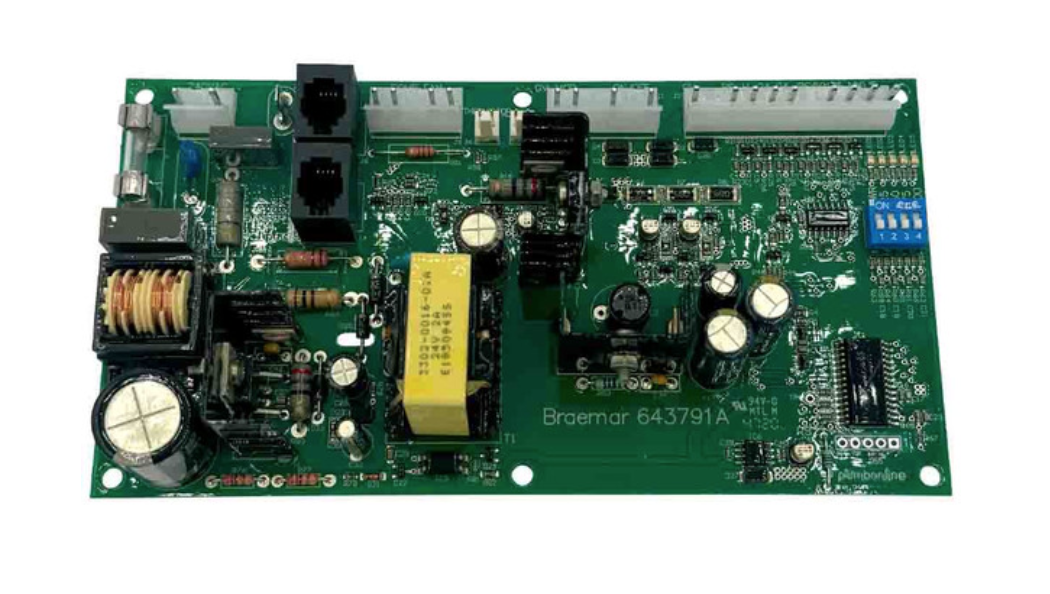

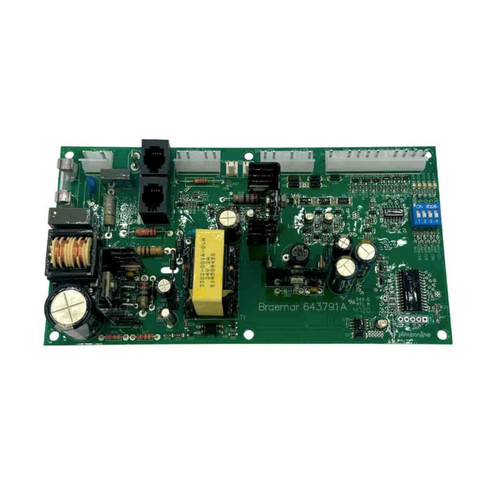

Replacing the Braemar THMD 530 & X PCB (PN: 640365)

Tools Needed:

Screwdrivers (Phillips and flathead)
Multimeter (for checking electrical connections)
Replacement PCB (Part Number: 640365)
Labels or camera (to record wire connections)

Step-by-Step Installation Process:

Turn Off Gas and Power:
- Before beginning the replacement, ensure that the gas supply and electric power to the heater are turned off to avoid electrical shock or gas leaks.
Remove the Heater Access Panel:
- Use a screwdriver to remove the access panel or cover of the heater. This will expose the internal components, including the PCB.
Locate the Existing PCB:
- The PCB is generally located near the burner or main control panel. It may be secured with screws or clips.
Disconnect Wiring from the Old PCB:
- Take a photo or label the wiring to ensure you reconnect the wires correctly to the new PCB. Then, carefully disconnect all the wiring from the old PCB.
Remove the Old PCB:
- Unscrew or unclip the old PCB from its mounting and gently remove it from the unit.
Install the New PCB (PN: 640365):
- Place the new PCB into the same location as the old one and secure it with screws or clips.
- Reconnect all the wiring to the new PCB following the reference photos or labels you created earlier.
Double-Check Wiring Connections:
- Ensure all wires are securely connected, especially the flame sensor, ignition system, fan motor, and temperature sensors.
Reassemble the Heater:
- Once the new PCB is installed and all wiring is connected, replace the access panel and secure it with screws.
Turn On Power and Gas:
- After reassembling the heater, turn on the gas supply and electric power. Check for correct operation.
Verify System Operation:
- The heater should attempt to ignite. The fan should modulate based on heating needs, and the system should be free of error codes. Verify that the heater is running smoothly and without issues.

Troubleshooting Common Issues After Replacing the PCB

If your Braemar THMD 530 & X heater is not operating correctly after replacing the PCB (PN: 640365), here are some troubleshooting steps:

1. Heater Does Not Ignite:

Possible Causes:
- Incorrect wiring on the PCB.
- Faulty spark igniter or flame sensor.
Solution:
- Double-check all wiring connections to ensure they are correctly placed.
- Test the spark igniter to ensure it is working.
- Clean or replace the flame sensor if it's not detecting the flame properly.

2. Error Codes Displayed:

Possible Causes:
- Error codes typically indicate issues like ignition failure, flame detection failure, or problems with the fan motor.
Solution:
- Refer to the user manual for error code definitions. Each error code corresponds to a specific issue.
- Troubleshoot based on the error code, which may point to a component such as the igniter, flame sensor, or fan motor.

3. Fan Runs at Constant Speed:

Possible Causes:
- Faulty fan motor or issues with fan speed modulation.
Solution:
- Verify that the fan motor is functioning correctly.
- Check that the wiring for the fan speed modulation is connected properly to the PCB and that the PCB is correctly controlling the fan speed.

4. Heater Overheats or Poor Heating:

Possible Causes:
- Temperature sensor malfunction or incorrect wiring.
Solution:
- Inspect and test the temperature sensors to ensure proper operation.
- Ensure the fan is modulating its speed and not running at a constant high speed, which could cause overheating.

Maintenance Tips for Braemar THMD 530 & X NG Ducted Heaters

To keep your Braemar THMD 530 & X heaters operating efficiently, perform regular maintenance on the following:

Clean the Flame Sensors: Over time, flame sensors can accumulate dirt or soot, which can interfere with their ability to detect the flame. Clean them periodically.
Inspect the Spark Igniter: Test the spark igniter to ensure it is functioning properly, producing a spark every time the system attempts to ignite.
Fan Maintenance: Clean the fan to prevent dust or debris from obstructing airflow. This helps maintain proper heating performance.
Check Gas Connections: Periodically inspect the gas lines and connections for any signs of leaks or wear. Safety is always a priority when dealing with gas appliances.
