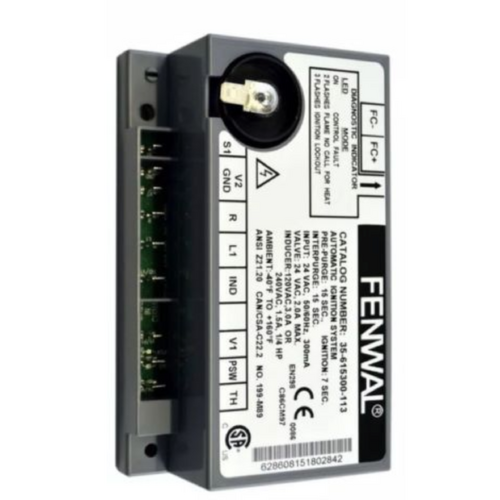

The Braemar TSS3 Star Ignition Unit Fenwal 35-615300-113 is an essential component designed for Braemar TSS3 Star Gas Ducted Heaters. This ignition unit plays a critical role in the safe and efficient operation of the heater by providing electronic ignition for the gas burner, ensuring the system operates reliably and without the need for a constantly burning pilot light.
The Fenwal 35-615300-113 Ignition Unit is a high-quality ignition module designed for gas ducted heating systems, such as those used in Braemar TSS3 Star Gas Ducted Heaters. It uses electronic ignition to provide the necessary spark to ignite the gas burner, which is essential for starting the combustion process and ensuring the heater functions correctly.
Electronic Ignition:
The Fenwal 35-615300-113 ignition unit generates a high-voltage spark to ignite the gas in the burner, eliminating the need for a pilot light. This makes the heating system more energy-efficient.
On-demand ignition: The ignition occurs only when required, which helps reduce energy consumption and improves the overall efficiency of the system.
Flame Detection:
The ignition unit continuously monitors the flame after ignition to ensure it remains lit. If the flame fails to ignite or is extinguished, the unit automatically shuts off the gas supply to prevent unsafe conditions such as gas leakage.
The flame failure protection feature ensures that the system operates safely by cutting off the gas supply when no flame is detected.
Overheating and Safety Protection:
The Fenwal 35-615300-113 is designed to withstand high temperatures and demanding conditions. It includes safety features like overheating protection and gas shut-off to protect both the ignition unit and the overall heating system from damage or unsafe operation.
The ignition unit is engineered to shut down in the event of a fault to prevent further damage to the system or risk to safety.
Part Number 628608:
The Part Number 628608 is associated with the Fenwal 35-615300-113 Ignition Unit, and it is used when sourcing replacement units for Braemar TSS3 Star Gas Ducted Heaters.
Durability:
The ignition unit is built to be durable, ensuring that it can withstand the high heat and constant use within gas ducted heating systems. Its long-lasting design helps reduce the need for frequent maintenance or replacements.
Thermostat Signal:
When the thermostat signals that heating is required, it triggers the ignition unit to begin the ignition sequence.
Gas Flow Activation:
The ignition unit opens the gas valve, allowing gas to flow into the burner.
Spark Generation:
The Fenwal 35-615300-113 Ignition Unit generates a high-voltage spark, which ignites the gas in the burner. This starts the combustion process and initiates the heating cycle.
Flame Monitoring:
Once the gas is ignited, the unit continuously monitors the flame to ensure it remains stable. If the flame goes out or fails to ignite, the ignition unit cuts off the gas supply to prevent the buildup of unburned gas and avoid potential hazards.
Continuous Safety Monitoring:
The unit ensures that the system operates safely by continuously checking the flame during the entire operation of the heater. If any issues arise, such as a flame failure, it will automatically stop the gas flow to prevent unsafe conditions.
The Fenwal 35-615300-113 Ignition Unit is designed for use in Braemar TSS3 Star Gas Ducted Heaters, which are typically used in residential or commercial settings to provide centralized heating.
These heaters efficiently heat spaces by circulating warm air through ducts. The ignition unit is crucial in ensuring the proper ignition of the gas and the safe operation of the heater.
If you're encountering problems with your Braemar TSS3 Star Gas Ducted Heater, it could be related to the Fenwal 35-615300-113 Ignition Unit. Some common issues include:
Failure to Ignite: If the ignition unit isn't generating the required spark, the heater will fail to ignite, and the system will not provide any heat.
Flame Detection Issues: If the ignition unit cannot detect the flame after the gas is ignited, it will automatically shut off the gas supply to prevent unsafe conditions.
Gas Flow Problems: If the ignition unit or associated components fail, the heater may not receive the necessary gas flow to function correctly.
If you experience any of the issues above, replacing the Fenwal 35-615300-113 Ignition Unit may be necessary. Here's a step-by-step guide on how to replace the ignition unit:
Turn Off the Power and Gas:
Make sure the heater is powered off, and the gas supply is completely shut off for safety before performing any work on the unit.
Locate the Ignition Unit:
The Fenwal 35-615300-113 Ignition Unit is typically located near the burner assembly and gas valve. Consult the heater’s user manual for exact placement.
Disconnect Wiring:
Carefully disconnect the wiring from the old ignition unit. Take note of the wiring configuration so you can reconnect the new unit correctly.
Remove the Old Ignition Unit:
Remove the faulty ignition unit from the system. Depending on the model, this may require unscrewing the unit or disconnecting a few mounting brackets.
Install the New Ignition Unit:
Install the new Fenwal 35-615300-113 Ignition Unit in place of the old one, ensuring it fits securely.
Reconnect Wiring:
Reconnect the wiring to the new ignition unit according to the wiring diagram or the notes you took earlier.
Test the Heater:
Once the unit is installed, turn the power and gas supply back on. Test the heater to ensure the ignition unit works properly and that the system ignites and operates smoothly.
The Braemar TSS3 Star Ignition Unit Fenwal 35-615300-113 is a vital component that ensures the safe and efficient operation of Braemar TSS3 Star Gas Ducted Heaters. It generates the necessary spark to ignite the gas burner, and its flame monitoring and safety features ensure that the system operates without risk. If you're facing issues such as failure to ignite or intermittent heating, replacing this ignition unit could solve the problem and restore your heater's functionality.
SKU | 19978 |
Brand | Braemar |
