Breezair / Braemar Evaporative Cooler Icon Control Box CPMD DD2 #109930,112954

Description
Specifications

Product Description

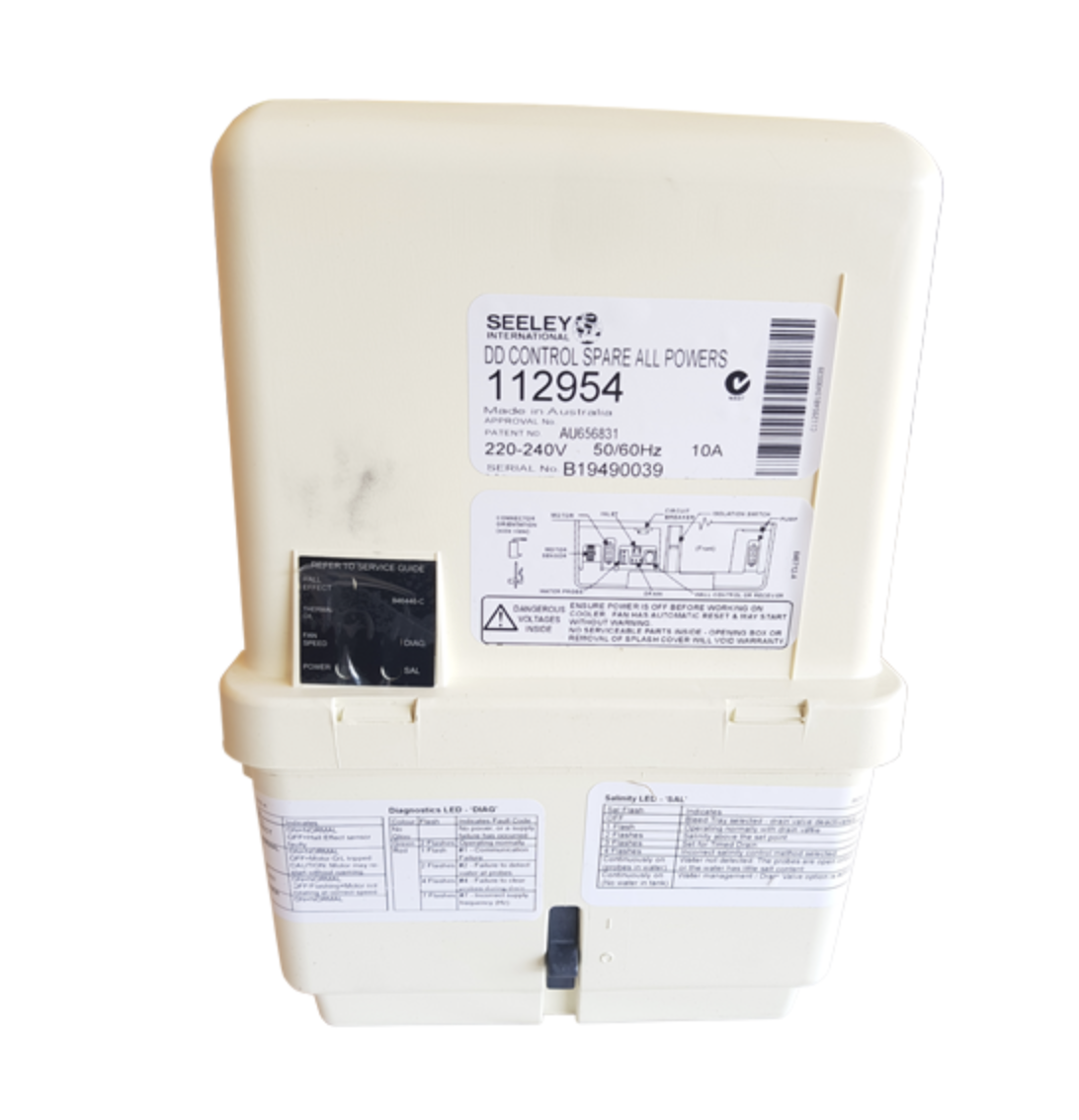

The Breezair / Braemar Evaporative Cooler Icon Control Box CPMD DD2 with part numbers #109930 and #112954 is an integral part of the Icon series of Breezair and Braemar evaporative coolers. This control box is designed to manage the various electrical functions that regulate the cooler’s operations, ensuring the smooth and efficient performance of the system.

Key Features:

Model Compatibility: Primarily designed for Direct Drive evaporative coolers, particularly the EXH and EZH series within the Breezair and Braemar Icon range.
Control Functionality: It is responsible for controlling the fan speed, the water pump, and the cooling cycles of the evaporative cooler.
Microprocessor Technology: Utilizes microprocessor-based technology to enhance the precision and efficiency of the cooling system.
Electrical Connections: The control box connects directly to the cooler’s motor, fan, and water pump, enabling all functions to operate in harmony.

Physical Description:

Size and Shape: The control box is typically a rectangular or compact enclosure made of durable plastic or metal to house the internal components.
Mounting: It is usually mounted within the main unit of the cooler or located nearby for easy access during servicing.
Inputs/Outputs: The control box will have various connections for wires that manage the cooler’s functions, including connections for power, fan, and pump systems.

Functionality:

Cooling Control: The control box adjusts the speed of the fan to regulate airflow and cooling intensity.
Water Flow: It manages the operation of the water pump to ensure the proper water distribution across the cooler pads, optimizing evaporation.
System Timing: Depending on the settings, the control box also regulates the cooler’s run-time and shuts off after a set period or when specific conditions are met.

Maintenance and Troubleshooting:

Replacement: If the control box fails or malfunctions, it can usually be replaced with the same part numbers #109930 or #112954.
Troubleshooting: Common issues with control boxes may include electrical faults, failure to power the fan or pump, or issues with the communication between the box and other components.
Installation: When replacing the control box, the cooler's power supply should be disconnected, and the wiring should be carefully matched to ensure compatibility with the replacement part.

Conclusion:

The CPMD DD2 Control Box is a crucial component in the Breezair / Braemar Icon Evaporative Coolers, enabling them to function efficiently and effectively. If you're experiencing issues with fan speeds, water flow, or cooling performance, this control box is a primary part to check for any malfunctions or wear.
