Product Description

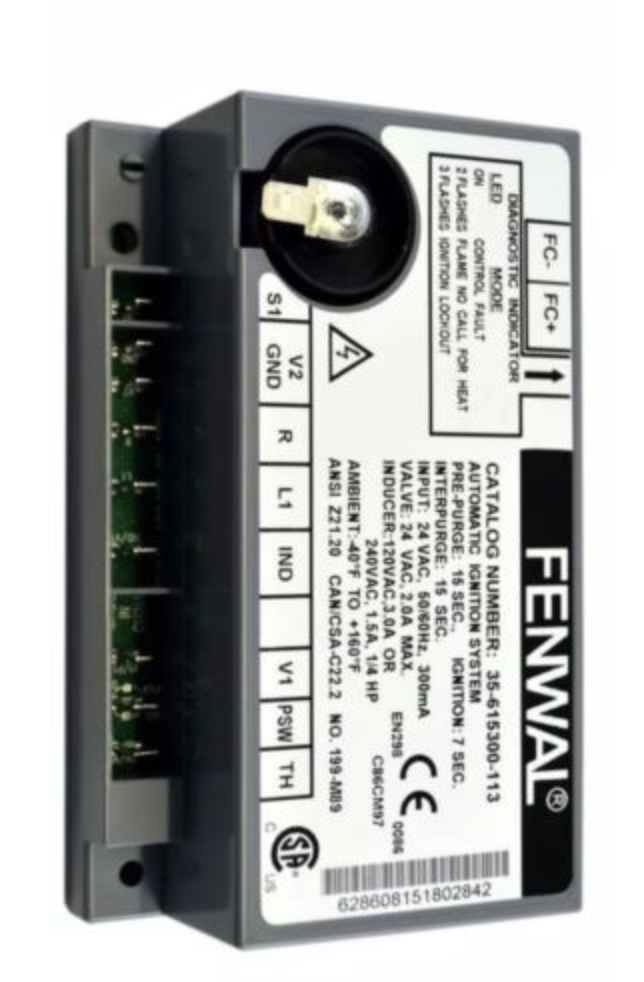

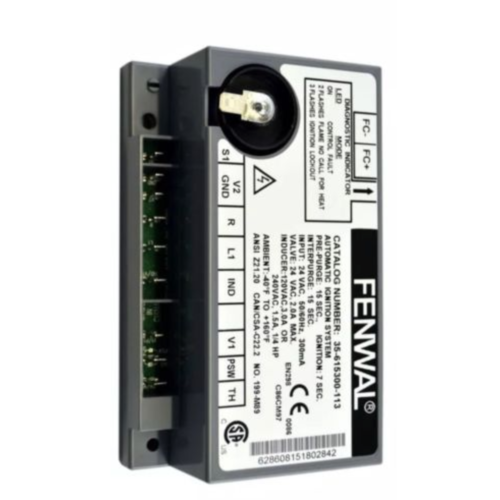

The Fenwal Ignition Board 628608 is a component designed for use in Braemar heating systems, specifically for their gas-powered heating appliances. This ignition board is an integral part of the ignition and control system of Braemar gas heaters, helping to regulate the ignition process, spark the burner, and ensure the safe operation of the appliance.
Key Features of the Fenwal Ignition Board 628608:
-
Compatibility:
- The Fenwal Ignition Board 628608 is specifically designed for use in Braemar gas heaters, particularly those that utilize an electronic ignition system.
- Model Compatibility: Ensure the specific Braemar gas heater model you are working with is compatible with the 628608 ignition board, as not all models may use the same ignition system.
-
Ignition Control:
- The board is responsible for controlling the spark ignition process within the gas heater. It generates the initial spark to ignite the gas, enabling the burner to light and initiate the heating cycle.
- In addition to ignition, the board controls the sequence of operation, ensuring that the heater ignites safely and in the proper order.
-
Safety Features:
- Fenwal Ignition Boards are known for their safety features, including protection circuits that prevent gas from being released without ignition. If the board detects that the ignition has failed, it will shut off the gas supply, preventing unsafe conditions.
- Flame Sensing: The board typically includes flame-sensing capabilities, where it monitors the flame to ensure the gas continues to burn properly. If it detects that the flame has gone out, it will shut off the gas supply to avoid gas leaks or dangerous conditions.
-
Durability:
- Built with durable materials, the Fenwal Ignition Board 628608 is designed to withstand the temperature variations and long operational cycles typical in gas heating systems.
- The components are robust and able to perform reliably over many years, even in challenging conditions such as high heat.
-
Easy Replacement:
- The Fenwal Ignition Board 628608 is designed to be an easy replacement for the old or faulty board in a Braemar heater. It typically comes with standard connectors and wiring that make it easy to install for qualified technicians or skilled DIYers.
-
Voltage and Power Supply:
- The board is designed to work with the standard voltage and power requirements typical in Braemar gas heaters (usually 240V AC, but this should be confirmed based on your specific heater model).
- Ensure the electrical connections are correct and meet the necessary specifications for safety and functionality.
Application:
- Gas Heaters: The Fenwal Ignition Board 628608 is specifically used in gas-powered heating systems, including ducted heating units, wall-mounted heaters, or space heaters from the Braemar brand.
- Residential and Commercial Use: This ignition board is typically used in residential heating applications, but it may also be found in small commercial systems.
Symptoms of a Faulty Ignition Board:
If the Fenwal Ignition Board 628608 begins to fail, you may notice:
- Failure to Ignite: The heater may not light or produce a spark when attempting to ignite.
- Intermittent Operation: The heater may fail to stay ignited or may start up and then shut off after a short period.
- Error Codes: Some Braemar models may display error codes related to ignition failure.
- No Flame Detection: The board may fail to detect the flame properly, shutting off the gas supply to avoid unsafe operation.
Installation and Replacement:
- Installation: Replacing the ignition board should be done by a qualified technician, as it involves electrical components and gas connections. Improper installation can lead to further system damage or safety hazards.
- Wiring: Ensure that the wiring connections are correct and that the board is correctly integrated into the system's gas valve and flame-sensing components.
Benefits of the Fenwal Ignition Board 628608:
- Safety: Ensures the safe ignition and operation of the gas heater, preventing the release of unlit gas into the system.
- Reliability: Known for long-lasting, dependable operation, helping keep your heating system running efficiently.
- Cost-Effective: Replacing a faulty ignition board can extend the life of your Braemar heater and avoid costly repairs or replacements of the entire unit.
Considerations:
- Proper Diagnosis: Before replacing the ignition board, it's essential to ensure that the issue is with the board and not another component of the system, such as the gas valve or sensor.
- Professional Installation: It's best to have an experienced heating technician handle the replacement, as working with gas systems and electrical components can be dangerous.
