Product Description

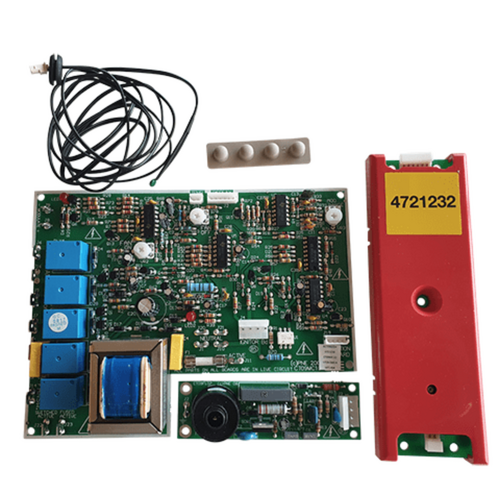

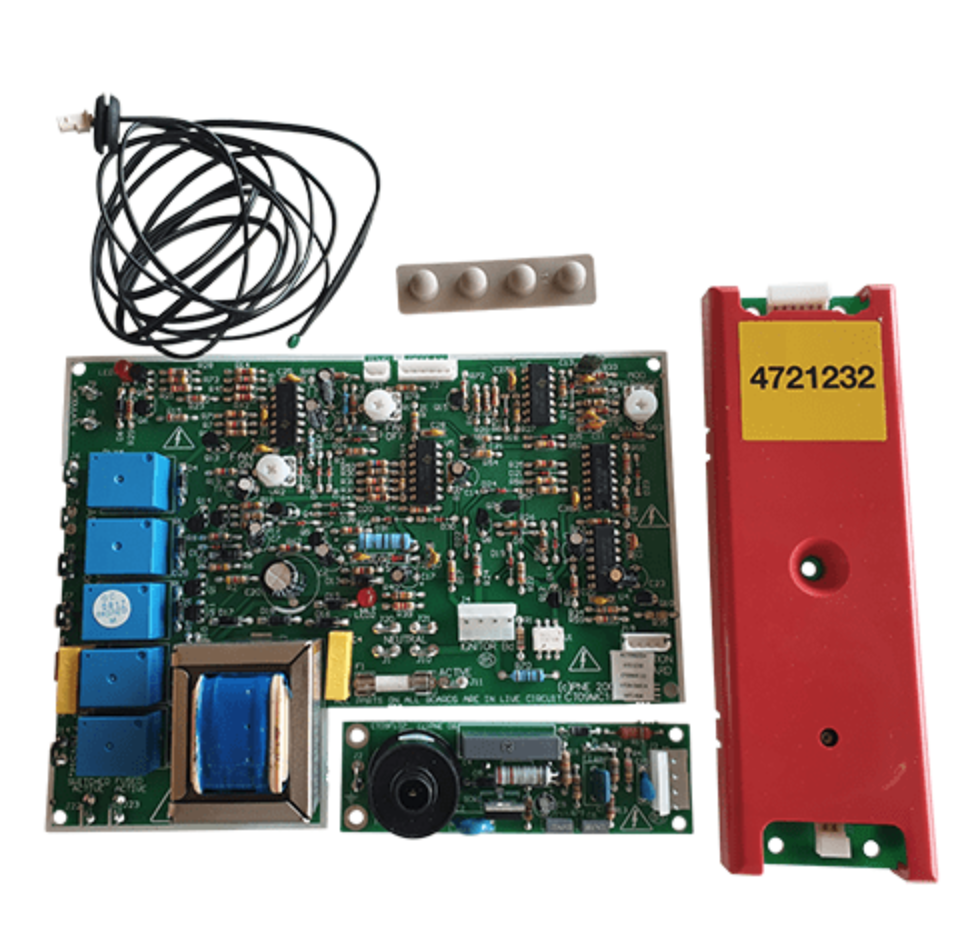

The Bonaire Vulcan Heater Main PCB Board Ignition & Thermostat PN. 4721216SP is a critical component of the Bonaire Vulcan gas heater. This Printed Circuit Board (PCB) controls the ignition system and thermostat functions for the heater, ensuring that the system operates efficiently and safely.
Key Features of the Bonaire Vulcan Heater Main PCB Board Ignition & Thermostat PN. 4721216SP:
-
Ignition Control:
- The PCB manages the ignition process in the heater. It receives signals from the thermostat or other controls to initiate the ignition sequence.
- It ensures that the gas supply is controlled correctly, activating the igniter to light the gas burner. Once the flame is established, it verifies the flame presence through a flame sensor to maintain safe operation.
-
Thermostat Integration:
- The PCB works with the thermostat to monitor and regulate the temperature in the room. It adjusts the heater's operation to maintain the desired temperature setting.
- When the thermostat signals a need for more heat, the PCB controls the gas valve to allow gas flow to the burner and activates the fan to distribute the heat.
- It also controls the system’s cycling, turning the heater on and off as needed to maintain the set temperature.
-
Safety Features:
- The PCB has built-in safety mechanisms, such as flame rectification to ensure that the gas valve only opens when the flame has been successfully ignited.
- If no flame is detected, the PCB will stop the gas flow to prevent gas accumulation, which could present a safety risk.
- Some boards may have additional safety features like overheat protection and error detection for issues like thermistor failures or fan malfunctions.
-
Compatibility:
- This PCB is designed for use with Bonaire Vulcan heaters and may be specific to certain models or series.
- It is important to ensure that the part number 4721216SP matches the one required for your specific model of heater to avoid compatibility issues.
-
Control Functions:
- The board provides an interface for controlling the ignition and thermostat settings.
- It helps to optimize the heating performance by managing the gas flow and ignition process based on the heating demand.
- The PCB may also control the fan speed to adjust the airflow based on room temperature or heating needs.
-
Replacement:
- If the heater fails to ignite or the thermostat doesn’t regulate the temperature properly, the PCB could be at fault. In such cases, it may need to be replaced.
- It is highly recommended to have a licensed technician install or replace the PCB to ensure it is correctly configured and safely integrated with the rest of the heating system.
-
Maintenance:
- Regularly inspecting the PCB board during annual servicing of your Bonaire Vulcan heater will help keep it functioning properly.
- Keep the board free from dust and debris, which can interfere with the connections and overall operation.
- If you notice error codes or unusual behavior (such as the heater not responding to thermostat adjustments), the PCB may need to be inspected for faults.
Installation and Troubleshooting:
-
Installation:
- The PCB should be installed by a qualified technician, as it involves dealing with electrical connections and gas flow control. Proper installation ensures that the system is safe and functions efficiently.
- When replacing the PCB, the technician will typically disconnect power to the unit and remove the old board, then connect the new one following the manufacturer’s guidelines.
-
Troubleshooting:
- If the heater is not igniting, check the PCB for any visible damage or signs of wear (e.g., burned areas or damaged components).
- You can also verify whether the flame sensor and igniter are working properly, as the PCB coordinates these functions.
- If the thermostat is unresponsive or the temperature is not being controlled correctly, the issue may lie with the PCB or the connections between the thermostat and the board.
-
Common Issues:
- Heater fails to ignite: This could be caused by a faulty PCB, an issue with the flame sensor, or a problem with the gas valve.
- Inaccurate temperature control: If the heater does not maintain the set temperature, the thermostat connection to the PCB may be faulty.
- Error codes or flashing lights: These often indicate a malfunction in the PCB, such as an issue with the flame detection or other system components.
Conclusion:
The Bonaire Vulcan Heater Main PCB Board Ignition & Thermostat PN. 4721216SP is a crucial part of the Bonaire Vulcan gas heater system. It controls both the ignition and thermostat functions, ensuring that your heater operates safely and efficiently. Regular maintenance and proper installation are key to ensuring the PCB continues to perform well. If you experience any issues with the heater’s ignition or thermostat control, it’s important to check the PCB and replace it if necessary.
