Product Description

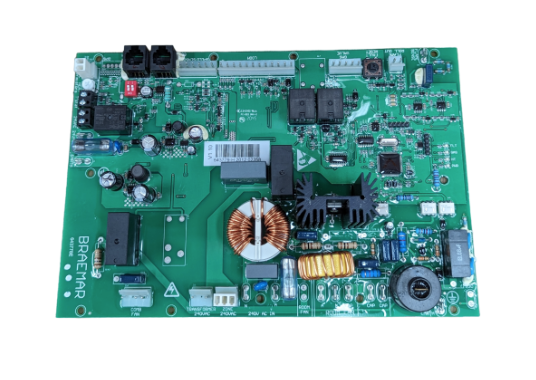

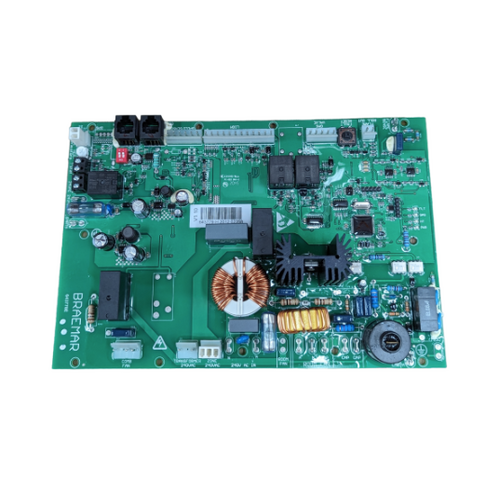

The Braemar BMQ 325 & X Gas Ducted Heater PCB Circuit Board ICS Stage 1 (with part numbers PN. 651422/651965) is a critical component for controlling and coordinating the operation of the Braemar BMQ 325 & X gas ducted heating systems. Here's a detailed breakdown of its function, features, and relevance:
1. Function of the PCB (Printed Circuit Board):
- The PCB (Printed Circuit Board) serves as the control center for the Braemar BMQ 325 & X gas ducted heaters. It governs the operation of essential components, such as the gas burner, fan motor, temperature sensors, and safety systems.
- It is part of the ICS (Integrated Control System) Stage 1, which likely refers to the initial phase of heating operation, managing gas flow, ignition, and fan operation. It ensures that the system starts and operates in the correct sequence for safe and efficient heating.
2. Stage 1 Control:
- Stage 1 refers to the first phase of operation in a multi-stage heating system. In the case of the Braemar BMQ 325 & X, this typically means the starting sequence where the PCB manages the gas flow to the burner and activates the fan. The system may have multiple stages to adjust heating output according to demand, and Stage 1 represents the beginning of the cycle.
- The ICS ensures smooth operation through each stage by managing the transition from one stage to the next based on feedback from sensors and thermostats.
3. Part Numbers (PN):
- 651422 and 651965 are the specific part numbers for the PCB circuit board compatible with the Braemar BMQ 325 & X gas ducted heaters. Using the correct part number ensures compatibility with the specific model, preventing issues with fit or functionality when replacing the part.
4. Key Features:
- Ignition Control: The PCB controls the ignition process by sending signals to the ignition system and gas valve, ensuring that gas flows to the burner when needed and is safely ignited.
- Fan Control: The PCB also controls the fan motor, ensuring that the fan is activated at the appropriate times to circulate warm air throughout the ductwork.
- Safety Monitoring: The board monitors key system functions, including flame detection, temperature regulation, and overheating protection. If a problem is detected, such as a flame failure or excessive temperature, the PCB can trigger an automatic shutdown to protect the system and ensure safety.
- Temperature Regulation: The PCB works with the thermostat to maintain the desired room temperature. It adjusts gas flow and fan operation as necessary based on feedback from the temperature sensors.
5. Common Issues:
- Failure to Ignite: If the PCB fails, it may not send the correct signals to the gas valve or ignition system, preventing the heater from starting.
- Inconsistent Heating: If the PCB is malfunctioning, it can cause erratic operation of the burner and fan, leading to uneven or inconsistent heating.
- Fan Not Operating: A faulty PCB might not properly coordinate the operation of the fan, leading to no airflow or inconsistent airflow, which can affect heating performance.
- Error Codes or System Lockout: Many modern heaters will display error codes or lock out the system if the PCB detects a fault, preventing further operation until the issue is addressed. This is a safety feature that helps prevent further damage or unsafe operation.
6. Replacement:
- If you’re experiencing problems such as failure to ignite, inconsistent heating, or error codes, it may indicate a malfunctioning PCB, which will need to be replaced.
- Correct Part Numbers: Ensure that the replacement PCB part number is 651422 or 651965, as using the wrong part may result in compatibility issues.
- Installation Process: Replacing the PCB typically involves turning off the gas and power supply to the system, removing the faulty board, and installing the new one. Care should be taken to connect the wiring correctly according to the manufacturer’s instructions.
- Professional Installation: If you are not comfortable with electrical or gas components, it is highly recommended to have a licensed technician handle the installation to ensure safety.
7. Maintenance:
- Regular Inspection: Inspect the PCB regularly for signs of damage, overheating, or wear. Dust and debris can accumulate on the board, causing overheating or potential electrical shorts. Using compressed air to clean the board can help keep it in optimal condition.
- Professional Servicing: If you notice that your heater is malfunctioning or is showing error codes, it is important to have the system professionally inspected and serviced. Technicians can identify issues with the PCB or other components in the system.
8. Conclusion:
The Braemar BMQ 325 & X Gas Ducted Heater PCB Circuit Board ICS Stage 1 (PN. 651422/651965) is essential for controlling and coordinating the operation of your gas ducted heating system. It ensures that the system ignites correctly, maintains consistent heating, and operates safely. If you're facing issues like inconsistent operation, error codes, or ignition failures, replacing the PCB with the correct part number will likely resolve the issue.
